Ambu® aScope™ 5 Broncho

Bronchoscopy like you’ve never seen it before

Request Demo

Ambu® aScope™ 5 Broncho is a family of single-use sterile bronchoscopes that works with the aView™ 2 Advance and aBox™ 2 endoscopy systems.

A new era of single-use performance

aScope 5 Broncho combines the excellent maneuverability and next-level imaging needed in the bronchoscopy suite with the sterility and efficiency of the single-use concept.

Greater flexibility for your workflow

You have a variety of sizes available whenever you need them. This eliminates the need for cancellations or rescheduling.

Sterility offers an extra measure of safety

You get a brand-new, sterile bronchoscope straight from the pack every time, eliminating the risk of patient-to-patient contamination.
​


​Get Additional Reimbursement with New TPT Payment Code Only for aScope 5 Broncho HD

Ambu’s fifth-generation single-use bronchoscope becomes the first and only bronchoscope to be granted incremental payment by CMS, facilitating Medicare beneficiary access to benefits of new and innovative medical technologies and therapeutics.

Learn more

Key benefits

Consistently high performance, sterility and flexibility

Excellent maneuverability

Bending angles of 195°/195° (5.6/2.8 and 5.0/2.2) and 210°/210° (4.2/2.2 and 2.7/1.2), distal tip angulation range, flexible insertion tube & 120° left/right rotation function.

Broad endotherapy instrument compatibility

Compatible with various endotherapy instruments, including active tools.

Next-level imaging

High-resolution camera chip* with 2 LEDs in scope and full-HD display unit.

*Available in 5.6/2.8 and 5.0/2.2

Always a brand new scope

No deterioration of image quality or bending performance; no worries about damaging an expensive scope.

Easier to plan and manage schedules

Continuous availability can save you from the inefficiency of cancellations.

Frees up time and resources

Eliminates the need for reprocessing and maintenance.

Sterile and ready when needed

A new sterile scope for every patient.

4 different sizes offer flexibility

Always available for diagnostic, therapeutic, peripheral airways or smaller anatomies.

Features

Take a closer look

add_circle1

Working channel port

Includes pre-attached biopsy valve and clearly indicated working channel size.

add_circle2

Multifunction buttons

Use the 2 buttons to control up to 4 programmable functions (image capture, video recording, zoom and ARC (Advanced Red Contrast).
add_circle3

Suction button and connector

Connect suction and activate as needed by pressing button.
add_circle4

Bending section

Access difficult-to-reach areas with 195°/195° (5.6/2.8 and 5.0/2.2) and 210°/210° (4.2/2.2 and 2.7/1.2) bending angles, distal tip angulation range, flexible insertion tube and rotation function.

add_circle5

Control lever

Moves the distal tip up and down in a single plane.
add_circle6

Handle grip

Rounded tactile surface for optimal hand positioning.
add_circle7

Rotation ring

Designed to support access to difficult-to-reach areas and to ease insertion of endotherapy instruments allowing 120° left/right rotation.

add_circle8

Depth marks

Marks every 5 cm to measure the distance to or from a specific area.
add_circle9

ET Tube connection

For ET tube parking during insertion.

Includes pre-attached biopsy valve and clearly indicated working channel size.

Use the 2 buttons to control up to 4 programmable functions (image capture, video recording, zoom and ARC (Advanced Red Contrast).
Connect suction and activate as needed by pressing button.

Access difficult-to-reach areas with 195°/195° (5.6/2.8 and 5.0/2.2) and 210°/210° (4.2/2.2 and 2.7/1.2) bending angles, distal tip angulation range, flexible insertion tube and rotation function.

Moves the distal tip up and down in a single plane.
Rounded tactile surface for optimal hand positioning.

Designed to support access to difficult-to-reach areas and to ease insertion of endotherapy instruments allowing 120° left/right rotation.

Marks every 5 cm to measure the distance to or from a specific area.
For ET tube parking during insertion.

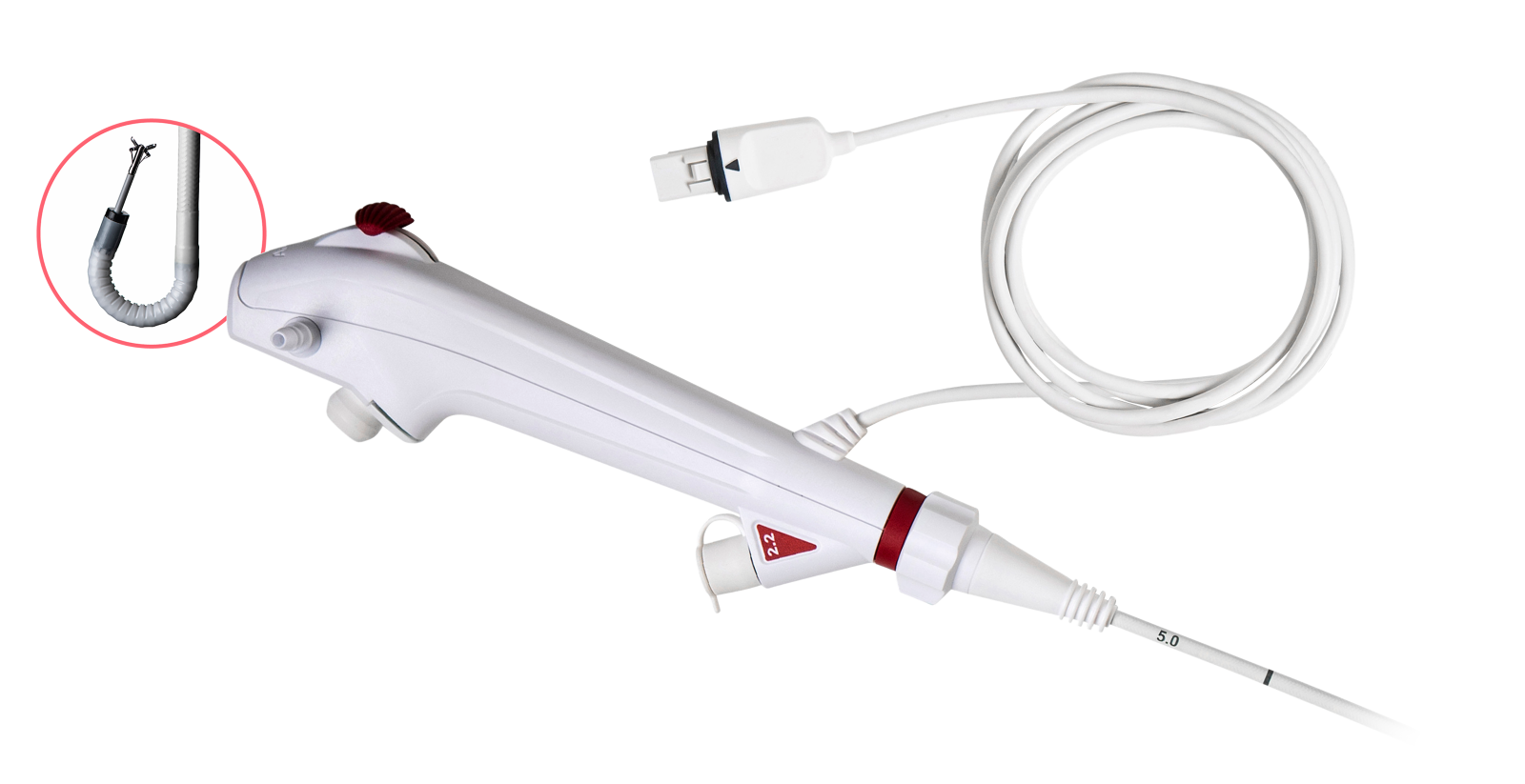

Note: aScope 5 Broncho HD 5.0/2.2 is shown in the image.
Some features will differ depending on the scope size.
​See product family for product comparison.

Bronchoscopy like you’ve never seen it before. Introducing aScope 5 Broncho.

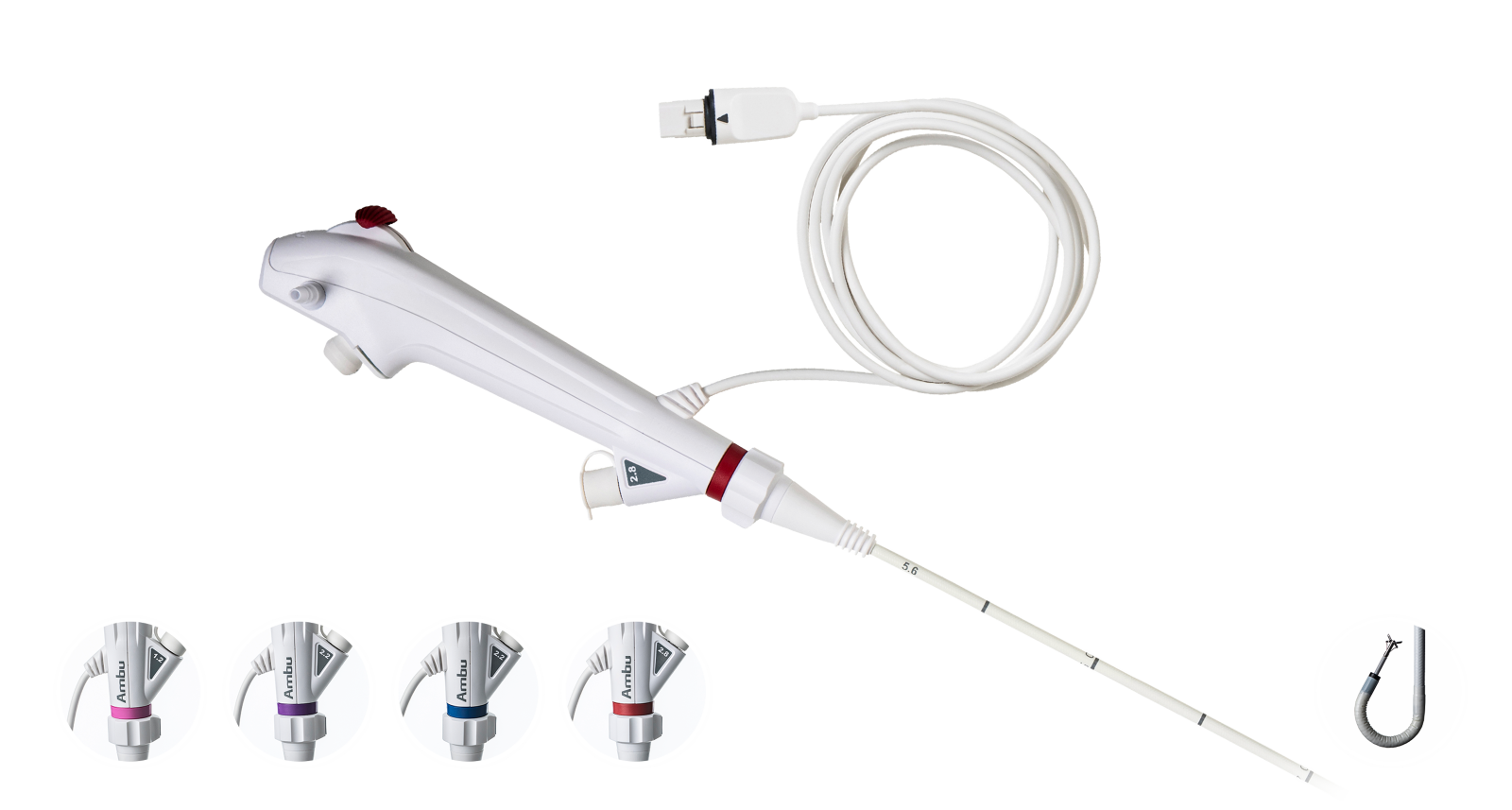

aScope 5 Broncho family of high-performance, single-use sterile bronchoscopes

Different sizes are available whenever you need them for diagnostic or therapeutic procedures:

  • Ambu® aScope™ 5 Broncho HD 5.6/2.8
  • Ambu® aScope™ 5 Broncho HD 5.0/2.2
  • Ambu® aScope™ 5 Broncho 4.2/2.2
  • Ambu® aScope™ 5 Broncho 2.7/1.2

Technical specifications

aScope 5 Broncho family

4 sizes (outer diameter/inner diameter)
5.6/2.8
5.0/2.2
4.2/2.2
2.7/1.2

Bending angles
5.6/2.8: 195°/195°
5.0/2.2: 195°/195°
​4.2/2.2: 210°/210°
2.7/1.2: 210°/210°

Imaging
5.6/2.8: HD System
​5.0/2.2: HD System

Depth of field (mm)

3-100

Field of view (degrees)

120°

Adaptive exposure control

Yes

Image enhancement

ARC (Advanced Red Contrast) functionality

Rotation function

120° left/right

Endoscope buttons

2 buttons with 4 functionalities

Depth marks

Every 5 cm
